P25SMT101TR

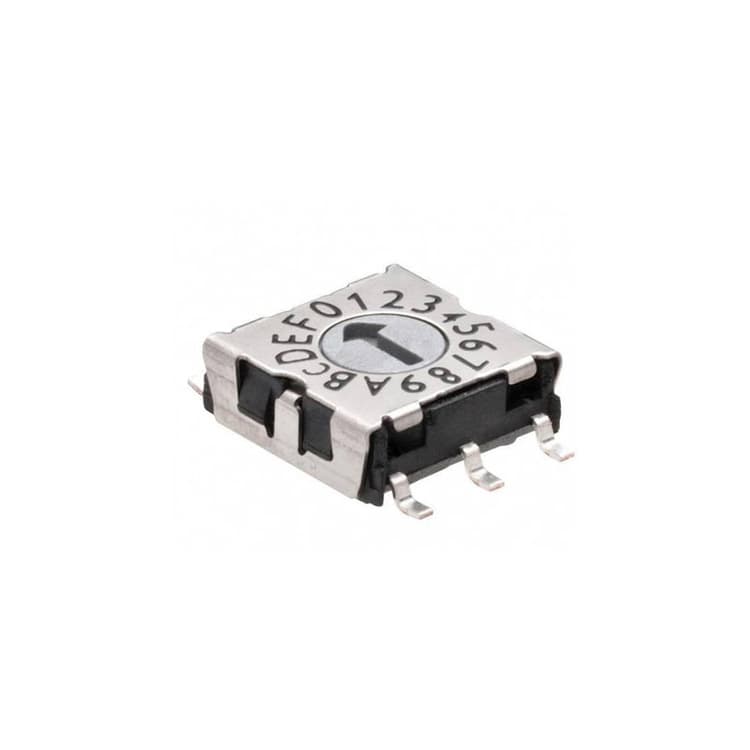

P25SMT101TR PCB 开关旨在为各种应用提供无缝的功能和耐用性。其具有箭头形状的槽口设计,使得开关动作轻松,操作无障碍。无论您需要控制电源、信号还是数据流,P25SMT101TR 都是理想的选择。其紧凑的设计和可靠的性能使其在广泛的行业中都非常适用。
规格
一般规格:
- 高度 2.5mm
- 长度 7.0mm
- 宽度 7.0mm
- 引脚连接 3+3,横向 C 型触点
- 最小扭矩。 0.7Ncm
- 每转位置 10, 16
环境指标:
- 工作温度 -50...+125°C
- 存储温度 -55...+135°C
- 湿度 40°C 93% RH 下 21 天
电气规格:
- 工作电压 ≤42V
- 接触负载,静态 ≤0.4A
- 接触负载,动态 ≤0.1A
- 最小负载 1μA 20mV DC
- 测试电压 250V 50Hz/1min
- 接触电阻 <80mOHM
- 绝缘电阻 >100MOHM
