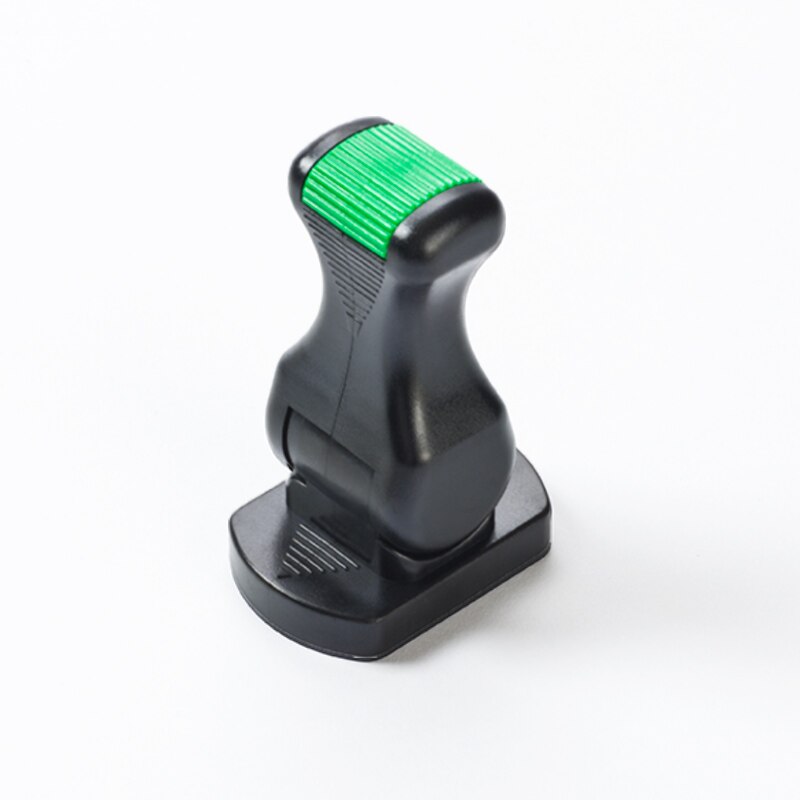

BF240SD3GR2500
APEM 的 BF 系列小型单轴操纵杆是最新式的拨桨式模拟量输出控制部件，采用了最新的无接触式超长寿命霍尔传感器，辅以创新的外观和机械结构设计，可提供自复位或摩擦止动配置，双路冗余模拟电压输出及 2 个开关量信号输出，适合各类需要小尺寸单轴控制器的应用场合。
规格
显着特点:
- Spring or friction control options
- Two lever heights available
- Inserts available in black, red, blue, yellow & green
- Analog or PWM outputs
- Zero below panel depth
一般规格:
- Storage: -40°C to 70°C (-40°F to 158°F)
- Operating Temperature: -25°C to 70°C (-13°F to 158°F)
- Seal Above Panel: IP67 (Gasket fitted as standard)
环境指标:
- EMC Emissions: Complies with EN 61000-6-3:2001 CISPR 22:2005 Class B 30MHz - 11GHz
- Life Cycles: 5 million cycles sprung version only. Detents rated to 2 million cycles
- ESD: Complies with EN61000-4-2 (extended)±8KV (20 contacts) & +/-15KV (20 air discharges)
- EMC Immunity: 100V/m, 80MHz-2.7GHz, 1KHz 80% sine wave modulation, EN 61000-4-3 (extended)
- Vibration: 100Hz - 200Hz @ 0.13g²/Hz, total 3.6gRMS(1 Hour in each of the three mutually perpendicular axis
电气规格:
- Gain (Output Voltage Span): ±10% x V to ±50% x V
- Output at Center: V/2 ± (5% x Gain)
- Power Supply: 5V ±0.5V Transient free
- Switch Outputs: Open Drain, pulled high within control via 1K5 to 5V, and smoothed to 0V with 100nF
- Sensor Type: Hall effect
- Current Consumption: <20mA
- Loads: Minimum 10K, preferred 100K+
材料:
- Housing: Polyetherimide, polycarbonate
- Handles: Polyetherimide, polycarbonate
